C Series High-Temperature Ceramic Coating
C Series is an air-cure, high-temperature ceramic coating rated up to 1,093°C (2,000°F), designed for exhausts, manifolds, headers and turbo parts. We apply C Series in a wide range of colours, in-house at our workshop in Heybridge, Essex.
What is C Series ceramic coating?
C Series coatings are Cerakote’s high-temperature range. They cure at ambient temperature (air cure) rather than in an oven, which makes them suitable for large or assembled exhaust components. Key features:
- Temperature: rated up to 1,093°C, with individual colours carrying their own ratings.
- Air cure: allow five full days before running up to working temperature.
- Typical uses: exhausts, manifolds, turbos and heat shields.
Choosing a colour
Browse the colour swatches below. Each swatch shows the colour’s own temperature rating, so we’ll confirm the colour you choose suits your part. If a colour with a lower rating is used on a hotter part, the guarantee will not apply.
Tungsten
Tungsten is a dark grey with silver metallic. Cerakote Tungsten C Series Ceramic Coatings will perform at temperatures up to 648ºc
Vortex Bronze
C-293Q Will perform at temperatures up to 645ºc

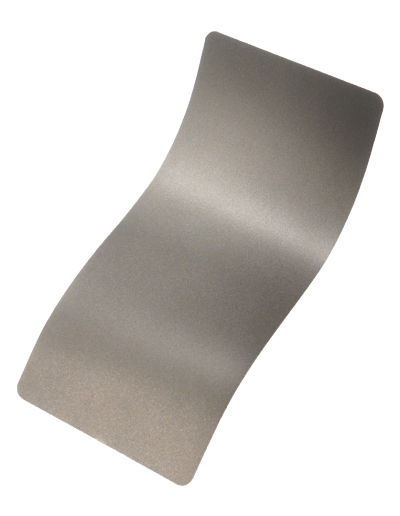

TRANSFER GREY (AIR CURE)
C-187Q Will perform at temperatures up to 982ºc

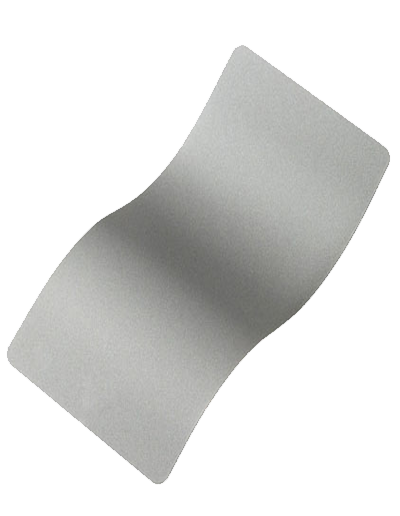

Stainless
Stainless is a rich pewter metallic. Cerakote Stainless C Series Ceramic Coatings will perform at temperatures up to 648ºc

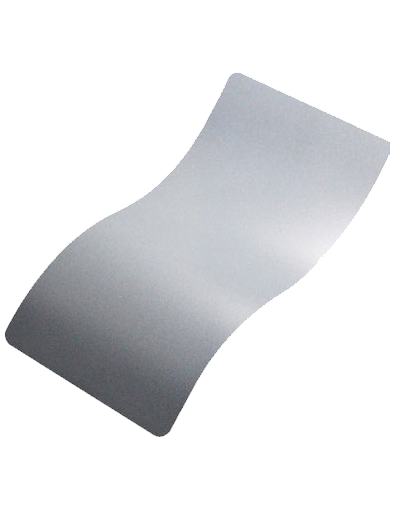

Satin Nickel
Satin Nickel is a bright aluminized silver. Cerakote Satin Nickel C Series Ceramic Coatings will perform at temperatures up to 982c and set the industry standard in high-temperature coatings.
Spotlight Red
C-143Q Will perform at temperatures up to 425ºc

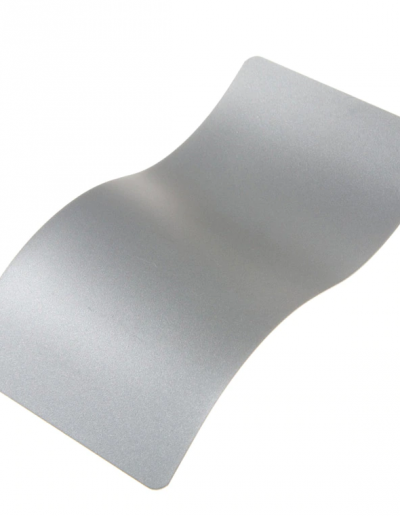

Satin Magnesium
C-103Q Will perform at temperatures up to 260ºc

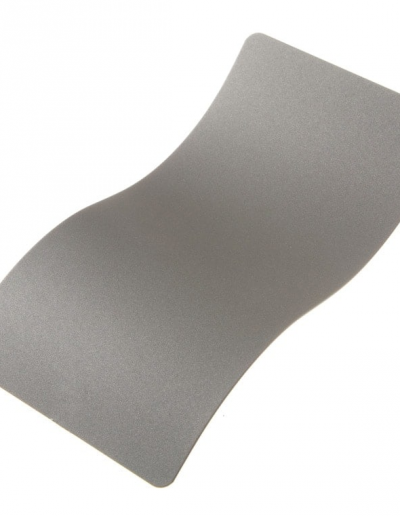

Medium Grey
C-219Q Will perform at temperatures up to 425ºc
Lolly Pop Purple
C-163Q Will perform at temperatures up to 425ºc
Graphite Black
C-102Q Will perform at temperatures up to 1090ºc
Hunter Orange
C-128Q Will perform at temperatures up to 625ºc

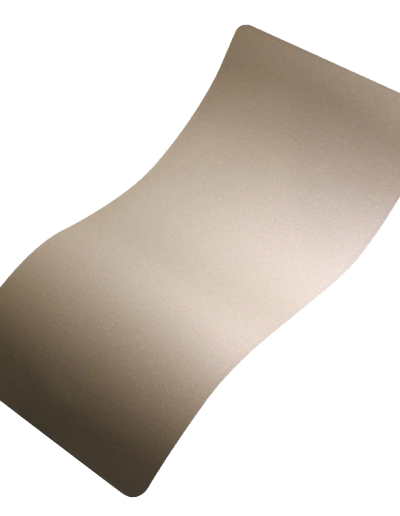

GLACIER TITANIUM
C-7900Q Will perform at temperatures up to 1093ºc
Black Velvet
C-7300Q Will Perform at temperatures up to 983ºc
Blue Flame
C-158Q Will Perform at temperatures up to 425ºc
Bright White
C-140Q Will perform at temperatures up to 145ºc (white) Not recommended for high temperature manifolds or turbo units.

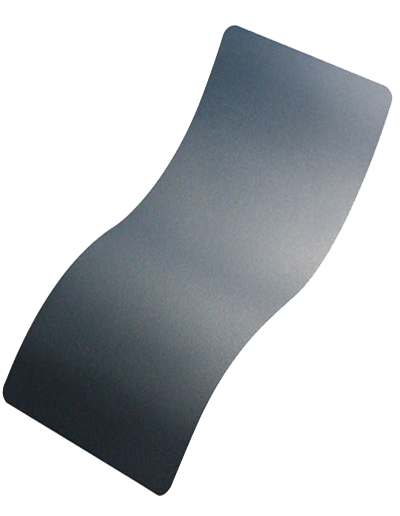

Blue Titanium
Blue Titanium is a medium blue with silver metallic. Cerakote Blue Titanium C Series Ceramic Coatings will perform at temperatures up to 870ºc
Burnt Bronze
C-148Q Will perform at temperatures up to 982ºc
GLACIER BLACK
C-7600Q Will perform at temperatures up to 1093ºc
Cobalt
C-112Q Will perform at temperatures up to 625ºc

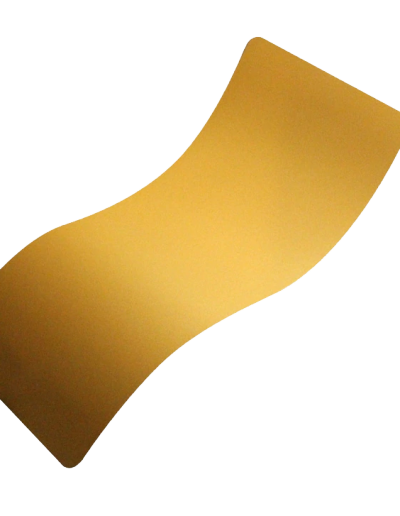

GLACIER GOLD
C-7800Q Will perform at temperatures up to 648ºc
GLACIER GREEN
Item: C-8100Q Will Perform at temperatures up to 983ºc

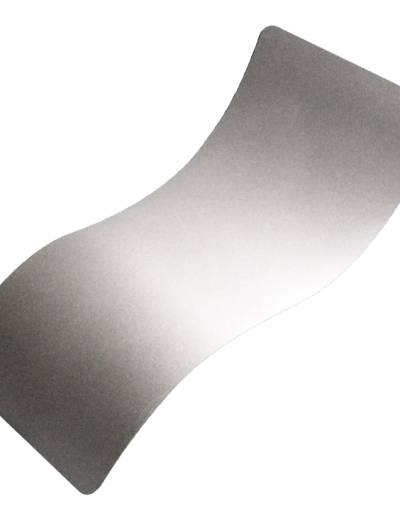

GLACIER SILVER
C-7700Q Will perform at temperatures up to 1093ºc
Process, guarantee and aftercare
Every part is blast cleaned with clean, virgin media, alcohol washed, preheated, masked where required and then coated.
Cerakote ceramic coatings carry a one-year guarantee, or two years with our two-stage plasma base and Cerakote system. Full details are on our ceramic coating guarantee page.
For a quote, call 01621 841100 or email msb@msbpcl.co.uk. You can also send your parts by courier.
C Series FAQs
What temperature can C Series ceramic coating withstand?
C Series is rated up to 1,093°C (2,000°F). Individual colours carry their own ratings, and we’ll advise which suit your part.
What does “air cure” mean?
The coating cures at ambient temperature rather than in an oven. It needs five full days to cure fully before running up to working temperature.
Do all C Series colours have the same temperature rating?
No. Each colour has its own rating, so we’ll check that your chosen colour suits how hot the part runs.
